n-BUTANE
Method number: |
PV2010 |
|
Matrix: | Air |
|
Target Concentration: |
800 ppm (1900 mg/m3) ACGIH threshold limit value (TLV). |
|
Procedure: |
Samples are collected by drawing known volumes of air through two Carbosieve S-III tubes in series. Samples are desorbed with desorbing solution (carbon disulfide/internal standard) and analyzed by gas chromatography (GC) using a flame ionization detector (FID). |
|
Recommended air volume and sampling rate: |
3 L at 0.05 L/min |
|
Detection limit of the overall procedure (based on the recommended air volume and the analytical detection limit): |
0.79 ppm (1.88 mg/m3) |
|
Status of method: |
Partially evaluated method. This method has been partially evaluated and is presented for information and trial use only. |
|
August 1993 (Final) |
Chemist: Ing-Fong Chan |
Organic Service Branch II
OSHA Technical Center
Salt Lake City, Utah
1. General Discussion
1.1. Background
1.1.1. History of procedure
This evaluation was undertaken to develop a sampling and
analytical procedure for butane at the ACGIH TLV 800 ppm
level (Ref. 5.1.).
1.1.2. Toxic effects (This section is for information only and
should not be taken as the basis of OSHA policy).
Butane is a simple asphyxiant and irritant. It is an
anesthetic at high concentrations. (Ref. 5.2. and Ref.
5.3.)
1.1.3. Potential workplace exposure
The following paragraph is excerpted from the book
Kirk-Othmer Encyclopedia of Chemical Technology, (Ref. 5.2.)
Butanes are used primarily as gasoline blending components and less so as liquefied fuel and in
the manufacture of chemicals. n-Butane and small amounts of isobutane are used for direct blending
in motor-fuel gasoline to control the volatility of the finished product. The butane content of
motor gasolines is ca 6-8 vol%. United States consumption of n-butane for this purpose was ca
84% of supply in 1977. --- Nonmotor-fuel uses of butanes represent ca 10% of the total
consumption. Liquid petroleum gas (LPG) is a mixture of butane and propane, typically in a ratio of 60:40
butane-propane. LPG is consumed as fuel in engines and in home, commercial, and industrial
applications. --- Butane also is used as a solvent in liquid-liquid extration of heavy oils in
deasphalting processes (Ref. 5.2.). No data is
available on the extent of work place exposure.
1.1.4. Physical properties (Ref. 5.2. and 5.3.)
CAS number: |
106-97-8 |
IMIS number: |
0420 |
Molecular weight: |
58.12 |
Molecular formula: |
C4H10 |
Boiling point: |
-0.5°C at 101.3 kPa (760 mmHg) |
Flash point: |
-138°C at 101.3 kPa (760 mmHg) |
Autoignition point: |
420°C at 101.3 kPa (760 mmHg) |
Explosive limit: |
1.8-8.4% by volume |
Vapor density: |
2.046 (air = 1) |
Appearance: |
colorless, and flammable gas |
Structure: |
CH3CH2CH2CH3 |
1.2. Limit defining parameters
The detection limit of the analytical procedure, including a
15:1 split ratio, is 0.333 ng per injection. This is the amount
of analyte which will give a peak whose height is approximately
five times the baseline noise.
2. Sampling Procedure
2.1. Apparatus
2.1.1. Samples are collected by using a personal sampling pump that can be calibrated to within ± 5% of the recommended
flow rate with the sampling device in line.
2.1.2. Samples are collected with two Carbosieve S-III tubes in series each
containing 130 mg adsorbing section with a 65 mg backup section separated by silanized glass wool,
with a silanized glass wool plug before the adsorbing section and after the backup section. The
ends are flame sealed and the glass tube containing the adsorbent is 7-cm long,
with a 6-mm O.D. and 4-mm I.D., Supelco tubes (ORBO-91) or equivalent.
2.2. Reagents
No sampling reagents are required.
2.3. Sampling technique
2.3.1. The ends of the Carbosieve S-III tubes are opened
immediately before sampling.
2.3.2. Connect two Carbosieve S-III tubes in series and connect the second tube to the sampling pump with flexible tubing.
2.3.3. Attach the sampler vertically in the employee's breathing zone in such a manner that it does not impede work performance.
2.3.4. After sampling for the appropriate time, remove the sampling device and seal the tube with plastic end caps.
2.3.5. Wrap each sample end-to-end with an OSHA Form-21 seal.
2.3.6. Record the air volume for each sample and list any possible interferences.
2.3.7. Submit at least one blank with each set of samples. Handle the blank in the same manner as the other samples,
except that no air is drawn through it.
2.3.8. If bulks are submitted for analysis, they must be shipped in a container separate from the samples.
2.4. Desorption efficiency
An amount of adsorbent equal to the sampling section (130 mg) of a Carbosieve S-III
tube was placed in each of twelve 2-mL vials. They were divided into four groups of
three vials. The vials were vapor spiked respectively with 0.27, 1.4, 2.7 and 5.0 mL of butane
(density = 2.09 mg/mL). These amounts represent 0.1×, 0.5×, 1.0×, and 2.0× the target concentration.
The vials were sealed with polytetrafluoroethylene (PTFE)-lined caps and allowed
to equilibrate overnight in a drawer at room temperature. The vials, along with a blank vial,
were desorbed with 1.0 mL of the desorbing solution, and analyzed as in Section 3. The average
desorption efficiency was 103.8%. The results are listed in Table 2.4.
Table 2.4. Desorption Efficiency
|
Sample # |
Amount Spiked, mg |
Amount Found, mg |
% Recovered |
|
D1 D2 D3 |
0.564 0.564 0.564 |
0.599 0.606 0.617 |
106.2 107.4 109.4 |
|
Average of 0.1× TLV = 107.7% |
|
D4 D5 D6 |
2.926 2.926 2.926 |
2.940 3.046 3.088 |
100.5 104.1 105.5 |
|
Average of 0.5× TLV = 103.4% |
|
D7 D8 D9 |
5.643 5.643 5.643 |
5.768 5.772 5.716 |
102.2 102.3 101.3 |
|
Average of 1.0× TLV = 101.9% |
|
D10 D11 D12 |
10.450 10.450 10.450 |
10.698 10.356 10.954 |
102.4 99.1 104.8 |
|
Average of 2.0× TLV = 102.1% |
|
2.5. Retention efficiency
Three Carbosieve S-III tubes were each vapor spiked with 2.7 mL (1× TLV) of butane. Five tubes were each vapor spiked with 5.0
mL (2× TLV) of butane. The tubes were allowed to equilibrate overnight in a drawer at room temperature. Each tube was
connected in series with another Carbosieve S-III tube. Three liters of humid air (~80% relative humidity) were drawn through each
tube at 0.05 L/min. The tubes, along with a blank tube, were desorbed with 1.0 mL of desorbing solution, and analyzed as in
Section 3. There was no butane found on the backup sections of the second tubes. The average retention efficiency was 101.6%.
The results are listed in Table 2.5.
Table 2.5. Retention Efficiency
|
|
% Recovered |
|
|
Front tube |
Second tube |
|
Sample # |
'A' |
'B' |
'A' |
'B' |
Total |
|
RE1 |
98.9 |
0.0 |
0.0 |
0.0 |
98.9 |
RE2 |
88.7 |
12.2 |
0.0 |
0.0 |
100.9 |
RE3 |
90.8 |
8.3 |
0.0 |
0.0 |
99.1 |
Average of 1.0× TLV = 99.6% |
|
|
R1 |
95.4 |
8.6 |
0.0 |
0.0 |
104.0 |
R2 |
72.5 |
19.3 |
14.9 |
0.0 |
106.7 |
R3 |
74.1 |
17.7 |
8.2 |
0.0 |
100.0 |
R4 |
67.0 |
22.8 |
16.5 |
0.0 |
106.3 |
R5 |
64.8 |
25.3 |
10.2 |
0.0 |
100.3 |
Average of 2.0× TLV = 103.5% |
|
|
2.6. Sample storage
Eight Carbosieve S-III tubes were each vapor spiked with 2.7 mL
(1× TLV) of butane. The tubes were allowed to equilibrate
overnight in a drawer at room temperature. Each tube was connected
in series with another Carbosieve S-III tube. Three liters of
humid air (~80% relative humidity) were drawn through each tube
at 0.05 L/min. The eight tubes were divided into two groups of
four each. The first group was stored in a drawer at ambient
temperature, and the second group was stored in a freezer (-5°C).
After seven days they were extracted and analyzed as in Section
3. No analyte was observed in backup sections of the second
tubes. The results are given in Tables 2.6.1. and 2.6.2.
Table 2.6.1. Ambient Storage
|
Days Stored |
Amount Spiked, mg |
Amount Found, mg |
% Recovered |
|
7 7 7 7 |
5.643 5.643 5.643 5.643 |
5.333 5.512 5.097 4.754 |
94.5 97.7 90.3 84.2 |
|
Average = 91.7% |
|
Table 2.6.2. Freezer Storage
|
Days Stored |
Amount Spiked, mg |
Amount Found, mg |
% Recovered |
|
7 7 7 7 |
5.643 5.643 5.643 5.643 |
5.506 5.564 5.544 5.427 |
97.6 98.6 98.2 96.2 |
|
Average = 97.7% |
|
2.7. Recommended air volume and sampling rate
2.7.1. The recommended air volume is 3 L.
2.7.2. The recommended flow rate is 0.05 L/min.
2.8. Interferences (sampling)
It is not known if any compounds will interfere with the
collection of butane. Any suspected interferences should be reported
to the laboratory with submitted samples.
2.9. Safety precautions (sampling)
2.9.1. Attach the sampling equipment in such a manner that it
will not interfere with work performance or employee
safety.
2.9.2. Follow all safety practices that apply to the work area
being sampled.
3. Analytical Procedure
3.1. Apparatus
3.1.1. A GC equipped with an FID. A Hewlett-Packard 5890A GC
equipped with both an FID and a Hewlett-Packard 7673A
Autosampler was used in this evaluation.
3.1.2. A GC column capable of separating butane from any
interferences. A 60 m × 0.32 mm i.d. (1.0 µm film) DB-1
capillary column was used in this evaluation.
3.1.3. An electronic integrator or some other suitable means to
measure detector response. A Waters 860 Networking
Computer System was used in this evaluation.
3.1.4. Volumetric flasks, pipets, and syringes for preparing
standards, making dilutions and performing
injections.
3.1.5. Vials, 2-mL with PTFE-lined caps.
3.2. Reagents
3.2.1. Hydrogen, air and nitrogen, GC grade.
3.2.2. Butane. The butane used in this evaluation was 99.9%
pure and purchased from Matheson CO., Inc.
3.2.3. Carbon disulfide. Reagent grade or better carbon
disulfide should be used. The carbon disulfide used in this
evaluation was purchased from EM Science.
3.2.4. p-Cymene. The p-Cymene used as an internal standard
(ISTD) was purchased from Aldrich Chemical Company Inc.
3.2.5. Desorbing solution. The desorbing solution is prepared
by adding 250 µL of p-Cymene to 1 L of carbon disulfide.
3.3. Standard preparation
3.3.1. Standards are prepared by diluting a known quantity of
butane with the desorbing solution. A standard of 1000
µL/ml butane in the desorbing solution at 664 mmHg and
23°C would be 2.09 mg/mL. This was calculated as
follows:
(1000 µL)(P)(298°K)(µ mole)(58.12 µg)(1 mg) (mL)(760 mm)(T)(24.45 µL)(µ mole)(1000 µg) |
= 2.09 mg/mL |
P T |
= = |
Pressure at time of standard preparation = 664 mmHg. Temperature at time of standard preparation = 296°K. |
3.3.2. At least two separate standards should be made. A third
standard at higher concentration should be prepared to
check the linearity of the detector response for butane.
3.4. Sample preparation
3.4.1. The front and back sections of each tube are placed in
separate 2 mL vials.
3.4.2. Each section is desorbed with 1.0 mL of the desorbing
solution.
3.4.3. The vials are sealed immediately with PTFE-lined septa
and allowed to desorb for 30 minutes with occasional
shaking.
3.5. Analysis
3.5.1. Instrument conditions
Column: |
DB-1, 60 m × 0.32 mm i.d., 1.0 µm film |
Head pressure: |
8.5 psi |
Injector temperature: |
150°C |
Detector temperature: |
250°C |
Column temperature: |
50°C (initial temp.) |
Temperature program: |
hold initial temp. 5 min, increase temp. at 10°C/min to 170°C, hold final temp. 1.5 min |
Dectector gas flow: |
|
hydrogen flow rate: |
30 mL/min |
air flow rate: |
240 mL/min |
nitrogen flow rate: |
30 mL/min |
Injection volume: |
1 µL |
Split ratio: |
15:1 |
Retention time: |
3.4 min (Butane) 17.3 min (p-Cymene) |

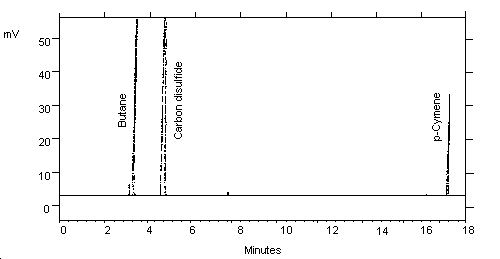

3.5.2. Chromatogram (See Figure 1.)
3.5.3. Measure detector response using a suitable method such as
electronic integration.
3.6. Interferences (analytical)
3.6.1. Any collected compound which produces an FID response and
has a similar retention time as butane or the internal
standard is a potential interference.
3.6.2. GC conditions may generally be varied to circumvent interferences.
3.6.3. Retention time on a single column is not proof of
chemical identity. Analysis by an alternate GC column, and
confirmation by mass spectrometry are additional means of
identification.
3.7. Calculations
3.7.1. An ISTD calibration method is used. The linear nature of
FID allows the use of single level calibration, but
bracketing of samples with analytical standards is a good
practice.
3.7.2. Determine the µg/mL of butane in both sections of each
sample and blank from the calibration curve. If butane
is found on the backup section, it is added to the amount
found on the front section. Blank corrections should be
performed before adding the results together.
3.7.3. Determine the air concentration by using the following formulae.
mg/m3 = |
(µg/mL, blank corrected) × (desorption volume, mL) (air volume, L) × (desorption efficiency, decimal) |
ppm = |
(mg/m)(24.45) (58.12) |
where |
24.45 58.12 |
= = |
molar volume (liters) at 101.3 kPa (760 mmHg) and 25°C molecular weight of butane |
3.8. Safety precautions (analytical)
3.8.1. Avoid air exposure to butane.
3.8.2. Avoid skin contact with all solvents.
3.8.3. Wear safety glasses in laboratory.
4. Recommendation for Further Study
This method should be fully validated.
Figure 1. Chromatogram of butane at 0.5× TLV.
5. References
5.1. "Threshold Limit Values for Chemical Substances and Physical
Agents and Biological Exposure Indices", ACGIH., 1991-1992.
5.2. Grayson, M., Kirk-Othmer Encyclopedia of Chemical Technology, 3rd
ed., John Wiley & Sons Inc., New York, 1983; Vol. 12, pp. 910-919.
5.3. Windholz, M., Budavari, S., Blumetti, RF., and Otterbein, E.,
The Merck Index, 10th ed., Merck & CO., Inc., Rahway, N.J., 1983; p 210.
|
